Datapoints for he4 + eu189 -> tb193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 2.758295e-230 |
| 0.2 | 5.654396e-181 |
| 0.3 | 2.032414e-126 |
| 0.4 | 4.864164e-97 |
| 0.5 | 7.944156e-79 |
| 0.6 | 1.587791e-66 |
| 0.7 | 1.022755e-57 |
| 0.8 | 3.947491e-51 |
| 0.9 | 4.882546e-46 |
| 1 | 5.409502e-42 |
| 1.5 | 4.566362e-30 |
| 2 | 3.660305e-24 |
| 2.5 | 1.587141e-20 |
| 3 | 5.646257e-18 |
| 3.5 | 4.876668e-16 |
| 4 | 1.696191e-14 |
| 4.5 | 3.097710e-13 |
| 5 | 3.461703e-12 |
| 6 | 1.408526e-10 |
| 7 | 1.816254e-09 |
| 8 | 9.603631e-09 |
| 9 | 2.470805e-08 |
| 10 | 3.512288e-08 |

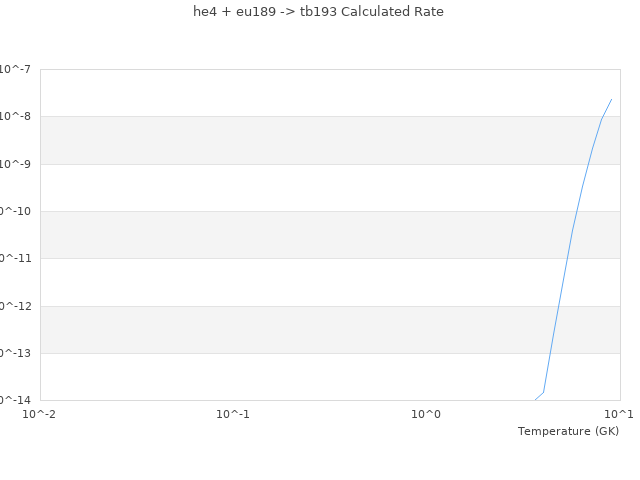

| View Graph | |
