Datapoints for he4 + eu190 -> tb194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-317 |
| 0.15 | 8.990137e-231 |
| 0.2 | 2.392685e-181 |
| 0.3 | 1.227933e-126 |
| 0.4 | 3.616213e-97 |
| 0.5 | 6.643036e-79 |
| 0.6 | 1.412046e-66 |
| 0.7 | 9.330592e-58 |
| 0.8 | 3.608005e-51 |
| 0.9 | 4.401490e-46 |
| 1 | 4.760276e-42 |
| 1.5 | 3.356861e-30 |
| 2 | 2.255527e-24 |
| 2.5 | 8.569950e-21 |
| 3 | 2.799784e-18 |
| 3.5 | 2.311885e-16 |
| 4 | 7.936263e-15 |
| 4.5 | 1.464834e-13 |
| 5 | 1.682034e-12 |
| 6 | 7.414620e-11 |
| 7 | 1.038577e-09 |
| 8 | 5.809786e-09 |
| 9 | 1.507173e-08 |
| 10 | 2.025653e-08 |

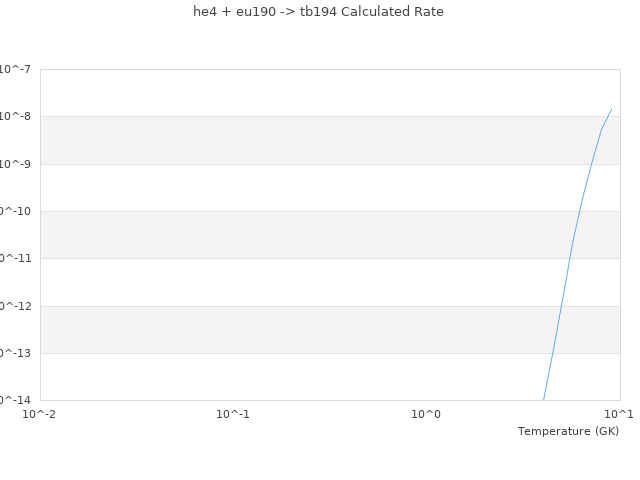

| View Graph | |
