Datapoints for p + eu193 -> gd194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.992050e-130 |
| 0.15 | 1.026250e-78 |
| 0.2 | 6.316484e-54 |
| 0.3 | 3.808950e-32 |
| 0.4 | 9.705364e-24 |
| 0.5 | 5.602797e-20 |
| 0.6 | 4.249202e-18 |
| 0.7 | 4.884570e-17 |
| 0.8 | 2.433119e-16 |
| 0.9 | 8.491384e-16 |
| 1 | 2.601512e-15 |
| 1.5 | 8.128478e-13 |
| 2 | 3.685710e-10 |
| 2.5 | 9.167648e-08 |
| 3 | 7.560649e-06 |
| 3.5 | 1.873966e-04 |
| 4 | 1.537942e-03 |
| 4.5 | 4.995578e-03 |
| 5 | 7.885578e-03 |
| 6 | 5.096325e-03 |
| 7 | 1.866491e-03 |
| 8 | 1.361477e-03 |
| 9 | 5.489357e-03 |
| 10 | 2.789764e-01 |

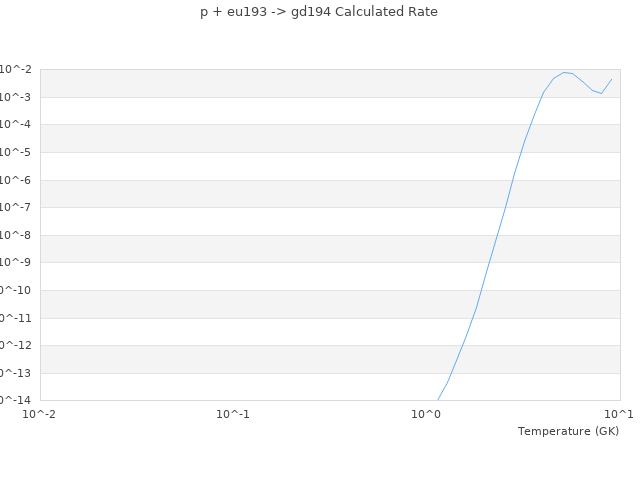

| View Graph | |
