Datapoints for p + eu193 -> n + gd193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.090205e-68 |
| 0.15 | 9.457597e-44 |
| 0.2 | 2.323953e-32 |
| 0.3 | 4.259227e-22 |
| 0.4 | 1.218563e-17 |
| 0.5 | 3.437244e-15 |
| 0.6 | 1.385737e-13 |
| 0.7 | 2.206284e-12 |
| 0.8 | 2.154446e-11 |
| 0.9 | 1.588125e-10 |
| 1 | 9.803891e-10 |
| 1.5 | 2.098739e-06 |
| 2 | 9.087355e-04 |
| 2.5 | 1.031307e-01 |
| 3 | 3.667628e+00 |
| 3.5 | 4.976543e+01 |
| 4 | 3.126411e+02 |
| 4.5 | 1.085701e+03 |
| 5 | 2.438588e+03 |
| 6 | 5.659808e+03 |
| 7 | 9.564725e+03 |
| 8 | 2.314687e+04 |
| 9 | 1.344445e+05 |
| 10 | 2.794812e+06 |

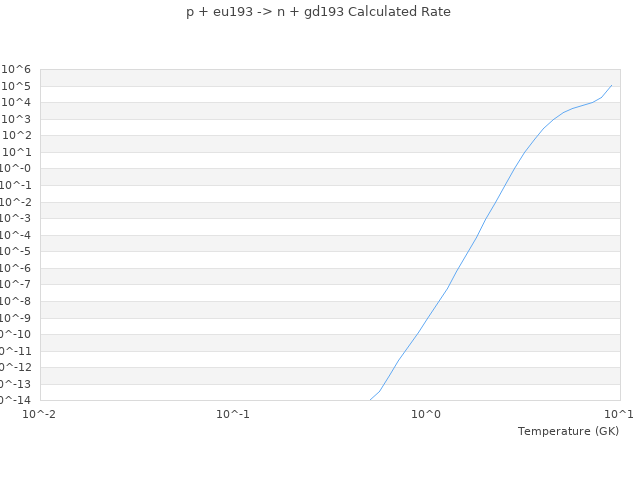

| View Graph | |
