Datapoints for he4 + eu193 -> tb197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-318 |
| 0.15 | 1.137583e-231 |
| 0.2 | 5.567446e-182 |
| 0.3 | 5.040063e-127 |
| 0.4 | 1.930456e-97 |
| 0.5 | 4.158351e-79 |
| 0.6 | 9.932107e-67 |
| 0.7 | 7.227208e-58 |
| 0.8 | 3.043922e-51 |
| 0.9 | 4.016698e-46 |
| 1 | 4.675274e-42 |
| 1.5 | 4.494785e-30 |
| 2 | 3.782558e-24 |
| 2.5 | 1.668819e-20 |
| 3 | 5.938554e-18 |
| 3.5 | 5.071810e-16 |
| 4 | 1.729017e-14 |
| 4.5 | 3.072661e-13 |
| 5 | 3.320966e-12 |
| 6 | 1.245177e-10 |
| 7 | 1.456474e-09 |
| 8 | 6.904773e-09 |
| 9 | 1.579344e-08 |
| 10 | 1.984476e-08 |

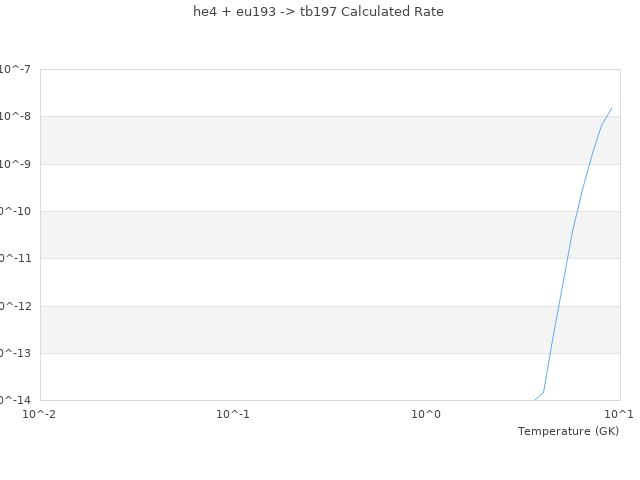

| View Graph | |
