Datapoints for he4 + eu193 -> n + tb196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-313 |
| 0.15 | 5.967658e-226 |
| 0.2 | 3.362646e-176 |
| 0.3 | 2.820592e-121 |
| 0.4 | 9.151075e-92 |
| 0.5 | 1.704541e-73 |
| 0.6 | 3.658201e-61 |
| 0.7 | 2.480983e-52 |
| 0.8 | 1.004426e-45 |
| 0.9 | 1.306393e-40 |
| 1 | 1.529205e-36 |
| 1.5 | 1.821128e-24 |
| 2 | 2.199004e-18 |
| 2.5 | 1.463029e-14 |
| 3 | 7.984476e-12 |
| 3.5 | 1.053010e-09 |
| 4 | 5.575212e-08 |
| 4.5 | 1.551264e-06 |
| 5 | 2.656130e-05 |
| 6 | 2.630512e-03 |
| 7 | 8.916642e-02 |
| 8 | 1.378127e+00 |
| 9 | 1.179546e+01 |
| 10 | 6.467088e+01 |

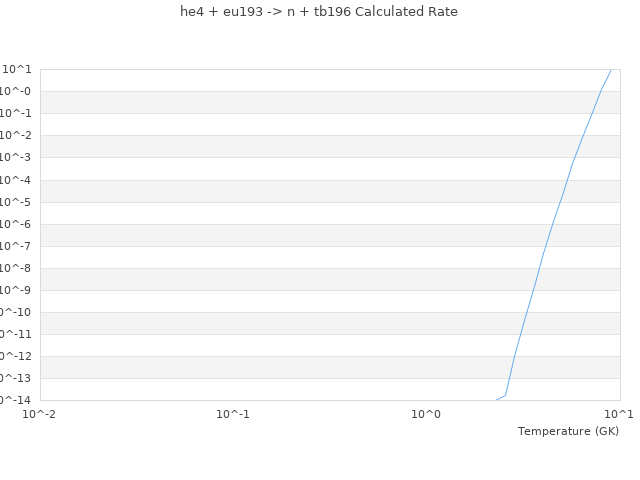

| View Graph | |
