Datapoints for p + eu196 -> gd197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.879582e-129 |
| 0.15 | 1.281868e-77 |
| 0.2 | 9.345545e-53 |
| 0.3 | 5.160028e-31 |
| 0.4 | 1.045737e-22 |
| 0.5 | 4.769211e-19 |
| 0.6 | 2.924232e-17 |
| 0.7 | 2.795065e-16 |
| 0.8 | 1.188616e-15 |
| 0.9 | 3.623809e-15 |
| 1 | 9.890554e-15 |
| 1.5 | 2.119676e-12 |
| 2 | 7.948778e-10 |
| 2.5 | 1.779672e-07 |
| 3 | 1.375320e-05 |
| 3.5 | 3.256974e-04 |
| 4 | 2.578084e-03 |
| 4.5 | 8.114798e-03 |
| 5 | 1.244515e-02 |
| 6 | 7.639736e-03 |
| 7 | 2.687929e-03 |
| 8 | 1.917531e-03 |
| 9 | 7.753585e-03 |
| 10 | 4.079860e-01 |

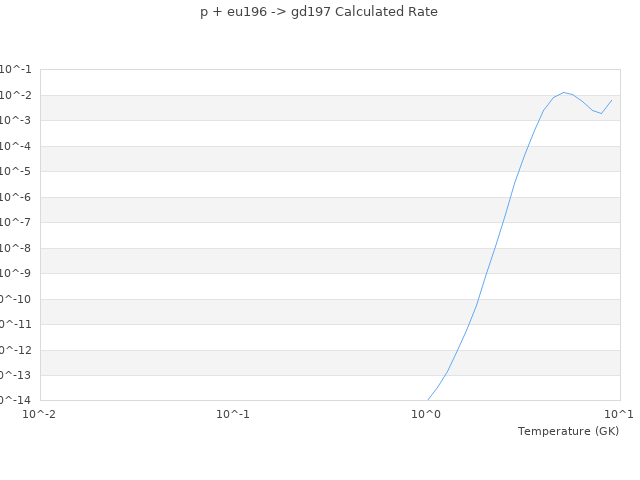

| View Graph | |
