Datapoints for p + eu197 -> gd198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.966455e-130 |
| 0.15 | 1.231841e-78 |
| 0.2 | 1.083368e-53 |
| 0.3 | 8.537466e-32 |
| 0.4 | 2.295258e-23 |
| 0.5 | 1.300638e-19 |
| 0.6 | 9.424534e-18 |
| 0.7 | 1.025154e-16 |
| 0.8 | 4.821060e-16 |
| 0.9 | 1.589983e-15 |
| 1 | 4.614315e-15 |
| 1.5 | 1.148922e-12 |
| 2 | 4.404371e-10 |
| 2.5 | 9.611415e-08 |
| 3 | 7.117062e-06 |
| 3.5 | 1.608101e-04 |
| 4 | 1.215942e-03 |
| 4.5 | 3.668001e-03 |
| 5 | 5.411412e-03 |
| 6 | 3.103551e-03 |
| 7 | 1.027737e-03 |
| 8 | 6.902005e-04 |
| 9 | 2.610084e-03 |
| 10 | 1.268556e-01 |

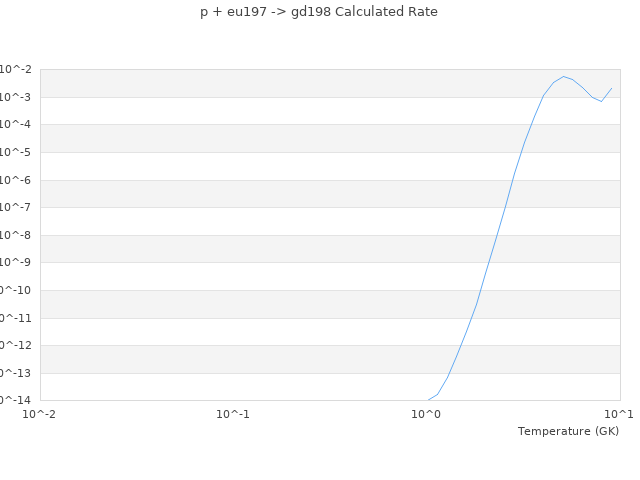

| View Graph | |
