Datapoints for p + gd130 -> tb131
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.054179e-163 |
| 0.15 | 8.168467e-105 |
| 0.2 | 7.539110e-77 |
| 0.3 | 6.715171e-50 |
| 0.4 | 6.149747e-37 |
| 0.5 | 2.322462e-29 |
| 0.6 | 2.142105e-24 |
| 0.7 | 6.902718e-21 |
| 0.8 | 2.848308e-18 |
| 0.9 | 3.051316e-16 |
| 1 | 1.286967e-14 |
| 1.5 | 1.110753e-09 |
| 2 | 4.037877e-07 |
| 2.5 | 1.577422e-05 |
| 3 | 1.915838e-04 |
| 3.5 | 1.144134e-03 |
| 4 | 4.247702e-03 |
| 4.5 | 1.121887e-02 |
| 5 | 2.293611e-02 |
| 6 | 5.477686e-02 |
| 7 | 7.683546e-02 |
| 8 | 7.417956e-02 |
| 9 | 5.439849e-02 |
| 10 | 3.236979e-02 |

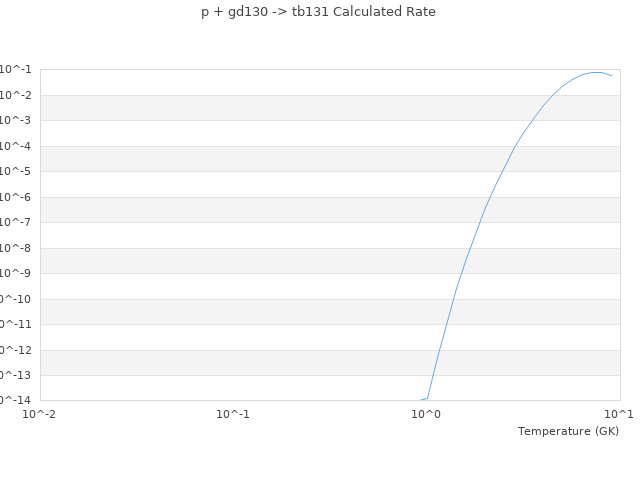

| View Graph | |
