Datapoints for tb131 -> p + gd130
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.922582e-15 |
| 0.15 | 2.459439e-03 |
| 0.2 | 1.749331e+02 |
| 0.3 | 1.432829e+06 |
| 0.4 | 4.519878e+07 |
| 0.5 | 2.440156e+08 |
| 0.6 | 6.470998e+08 |
| 0.7 | 1.232879e+09 |
| 0.8 | 1.981471e+09 |
| 0.9 | 2.896703e+09 |
| 1 | 4.001753e+09 |
| 1.5 | 1.387801e+10 |
| 2 | 3.632583e+10 |
| 2.5 | 7.931263e+10 |
| 3 | 1.480823e+11 |
| 3.5 | 2.406087e+11 |
| 4 | 3.456836e+11 |
| 4.5 | 4.455126e+11 |
| 5 | 5.216664e+11 |
| 6 | 5.600557e+11 |
| 7 | 4.599927e+11 |
| 8 | 3.053603e+11 |
| 9 | 1.708727e+11 |
| 10 | 8.327699e+10 |

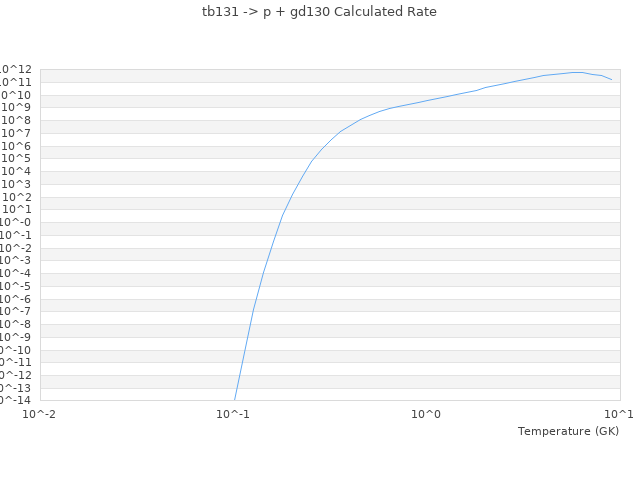

| View Graph | |
