Datapoints for tb134 -> p + gd133
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.855215e-06 |
| 0.15 | 1.152401e+01 |
| 0.2 | 1.276928e+03 |
| 0.3 | 3.567115e+04 |
| 0.4 | 1.638991e+05 |
| 0.5 | 5.279085e+05 |
| 0.6 | 1.531930e+06 |
| 0.7 | 4.202788e+06 |
| 0.8 | 1.097872e+07 |
| 0.9 | 2.729406e+07 |
| 1 | 6.452947e+07 |
| 1.5 | 2.332185e+09 |
| 2 | 3.158558e+10 |
| 2.5 | 2.118651e+11 |
| 3 | 8.611964e+11 |
| 3.5 | 2.430919e+12 |
| 4 | 5.227692e+12 |
| 4.5 | 9.135283e+12 |
| 5 | 1.358170e+13 |
| 6 | 2.095144e+13 |
| 7 | 2.293574e+13 |
| 8 | 1.976103e+13 |
| 9 | 1.427163e+13 |
| 10 | 8.989766e+12 |

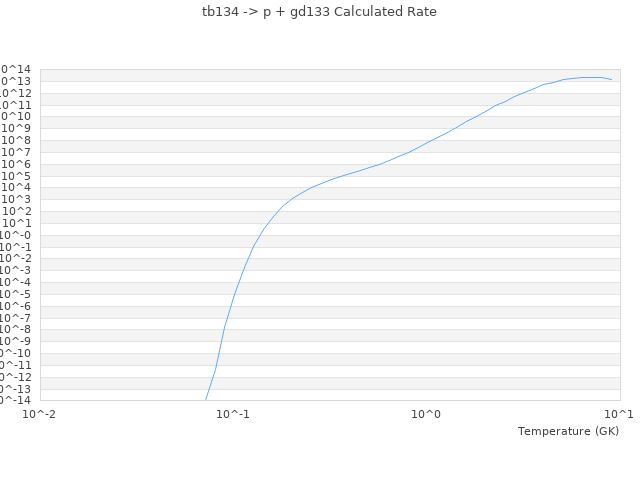

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
