Datapoints for dy140 -> he4 + gd136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.037100e-233 |
| 0.15 | 1.645528e-151 |
| 0.2 | 2.645090e-107 |
| 0.3 | 4.551364e-62 |
| 0.4 | 3.781177e-40 |
| 0.5 | 7.787225e-28 |
| 0.6 | 2.978092e-20 |
| 0.7 | 2.858486e-15 |
| 0.8 | 7.910703e-12 |
| 0.9 | 2.382495e-09 |
| 1 | 1.689252e-07 |
| 1.5 | 1.418808e-02 |
| 2 | 3.407704e+00 |
| 2.5 | 1.508777e+02 |
| 3 | 3.013963e+03 |
| 3.5 | 3.461903e+04 |
| 4 | 2.499462e+05 |
| 4.5 | 1.195998e+06 |
| 5 | 3.972394e+06 |
| 6 | 1.763790e+07 |
| 7 | 3.170400e+07 |
| 8 | 3.288924e+07 |
| 9 | 2.716541e+07 |
| 10 | 2.372757e+07 |

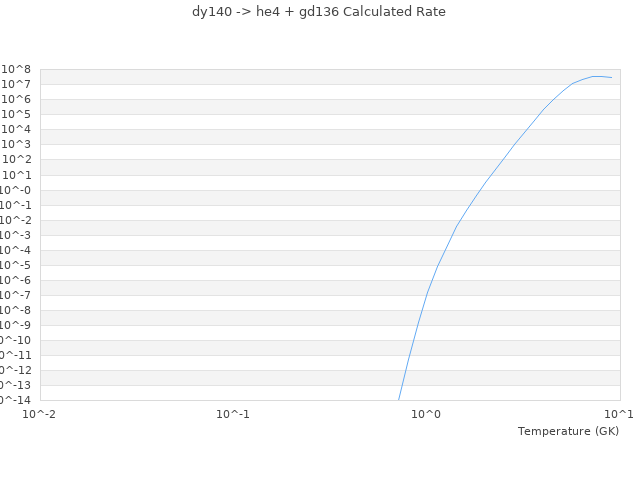

| View Graph | |
