Datapoints for tb145 -> p + gd144
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.027384e-178 |
| 0.15 | 1.783762e-115 |
| 0.2 | 2.048083e-84 |
| 0.3 | 3.647287e-54 |
| 0.4 | 1.654399e-39 |
| 0.5 | 7.800575e-31 |
| 0.6 | 5.044441e-25 |
| 0.7 | 8.741672e-21 |
| 0.8 | 1.695325e-17 |
| 0.9 | 7.892632e-15 |
| 1 | 1.370279e-12 |
| 1.5 | 7.338830e-05 |
| 2 | 5.466135e+00 |
| 2.5 | 1.431243e+04 |
| 3 | 4.291918e+06 |
| 3.5 | 2.752481e+08 |
| 4 | 5.651018e+09 |
| 4.5 | 4.965140e+10 |
| 5 | 2.331251e+11 |
| 6 | 1.536993e+12 |
| 7 | 4.696575e+12 |
| 8 | 1.404506e+13 |
| 9 | 7.106468e+13 |
| 10 | 9.193882e+14 |

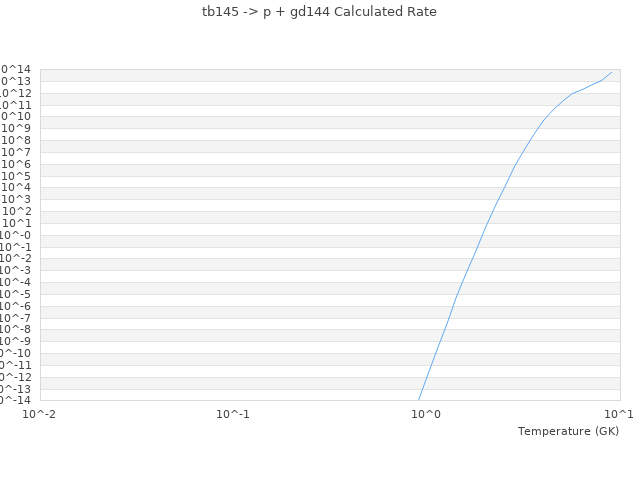

| View Graph | |
