Datapoints for p + gd144 -> tb145
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.533741e-67 |
| 0.15 | 3.136361e-44 |
| 0.2 | 2.341688e-33 |
| 0.3 | 2.272556e-23 |
| 0.4 | 6.699259e-19 |
| 0.5 | 2.260988e-16 |
| 0.6 | 1.112533e-14 |
| 0.7 | 2.126193e-13 |
| 0.8 | 2.429236e-12 |
| 0.9 | 2.042137e-11 |
| 1 | 1.405193e-10 |
| 1.5 | 4.097479e-07 |
| 2 | 1.982495e-04 |
| 2.5 | 2.343744e-02 |
| 3 | 8.474155e-01 |
| 3.5 | 1.157004e+01 |
| 4 | 7.247506e+01 |
| 4.5 | 2.477077e+02 |
| 5 | 5.374041e+02 |
| 6 | 1.073055e+03 |
| 7 | 1.347733e+03 |
| 8 | 2.014086e+03 |
| 9 | 5.818579e+03 |
| 10 | 4.728200e+04 |

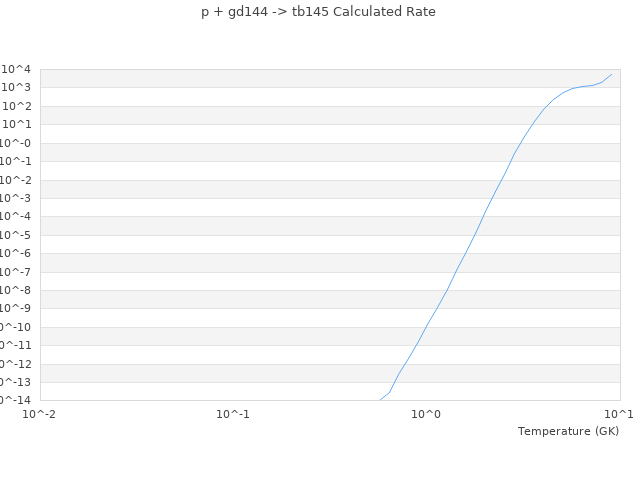

| View Graph | |
