Datapoints for p + gd166 -> tb167
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.377918e-123 |
| 0.15 | 2.387715e-74 |
| 0.2 | 2.095218e-50 |
| 0.3 | 2.556460e-29 |
| 0.4 | 3.798849e-21 |
| 0.5 | 1.798073e-17 |
| 0.6 | 1.264409e-15 |
| 0.7 | 1.407987e-14 |
| 0.8 | 6.877802e-14 |
| 0.9 | 2.352479e-13 |
| 1 | 7.025014e-13 |
| 1.5 | 1.758533e-10 |
| 2 | 5.902117e-08 |
| 2.5 | 1.088490e-05 |
| 3 | 6.895269e-04 |
| 3.5 | 1.372179e-02 |
| 4 | 9.432499e-02 |
| 4.5 | 2.659943e-01 |
| 5 | 3.747637e-01 |
| 6 | 2.028170e-01 |
| 7 | 6.316761e-02 |
| 8 | 3.775874e-02 |
| 9 | 1.151948e-01 |
| 10 | 3.951483e+00 |

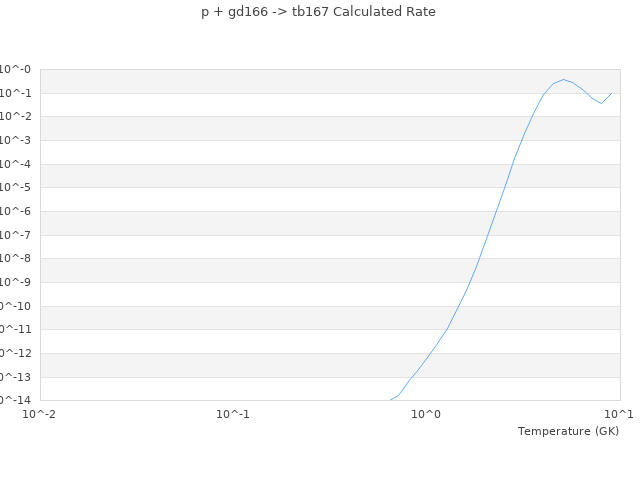

| View Graph | |
