Datapoints for gd169 -> n + gd168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.592108e-172 |
| 0.15 | 4.142183e-110 |
| 0.2 | 5.270839e-79 |
| 0.3 | 8.613122e-48 |
| 0.4 | 4.191476e-32 |
| 0.5 | 1.209921e-22 |
| 0.6 | 2.636703e-16 |
| 0.7 | 9.335062e-12 |
| 0.8 | 2.497483e-08 |
| 0.9 | 1.187830e-05 |
| 1 | 1.679575e-03 |
| 1.5 | 5.420874e+03 |
| 2 | 1.049872e+07 |
| 2.5 | 9.765785e+08 |
| 3 | 1.910418e+10 |
| 3.5 | 1.490407e+11 |
| 4 | 6.408753e+11 |
| 4.5 | 1.821945e+12 |
| 5 | 3.824528e+12 |
| 6 | 8.814711e+12 |
| 7 | 1.104039e+13 |
| 8 | 8.960663e+12 |
| 9 | 5.213977e+12 |
| 10 | 2.316227e+12 |

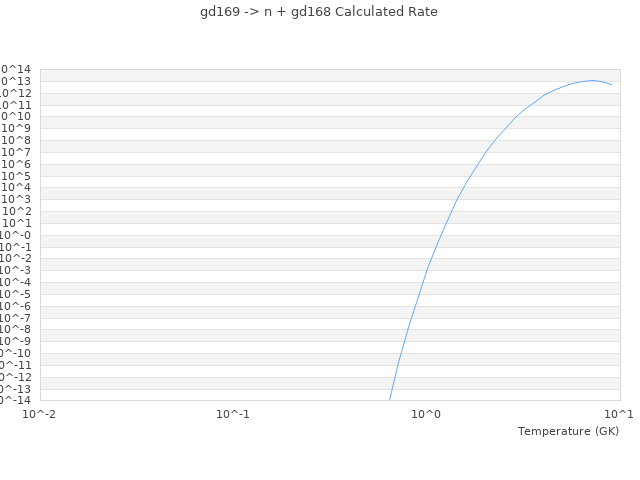

| View Graph | |
