Datapoints for n + gd168 -> gd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.202693e+06 |
| 0.15 | 1.184468e+06 |
| 0.2 | 1.226248e+06 |
| 0.3 | 1.366266e+06 |
| 0.4 | 1.528410e+06 |
| 0.5 | 1.692812e+06 |
| 0.6 | 1.852267e+06 |
| 0.7 | 2.003278e+06 |
| 0.8 | 2.143828e+06 |
| 0.9 | 2.272639e+06 |
| 1 | 2.388877e+06 |
| 1.5 | 2.770061e+06 |
| 2 | 2.830934e+06 |
| 2.5 | 2.636356e+06 |
| 3 | 2.278064e+06 |
| 3.5 | 1.846727e+06 |
| 4 | 1.414795e+06 |
| 4.5 | 1.029651e+06 |
| 5 | 7.146071e+05 |
| 6 | 3.019131e+05 |
| 7 | 1.085871e+05 |
| 8 | 3.365512e+04 |
| 9 | 9.070540e+03 |
| 10 | 2.140890e+03 |

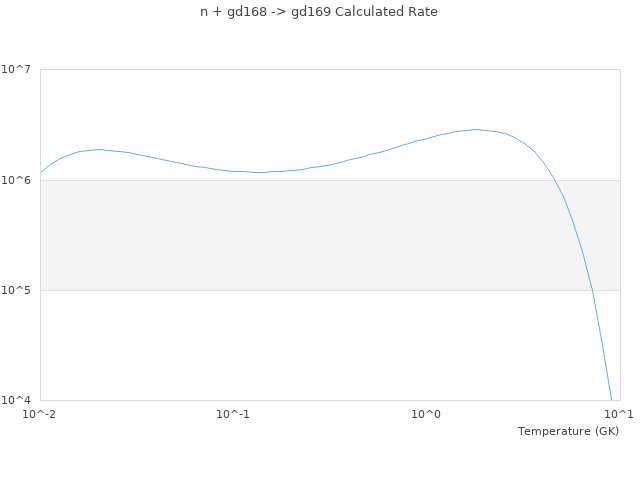

| View Graph | |
