Datapoints for p + gd168 -> tb169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.648762e-124 |
| 0.15 | 4.484615e-75 |
| 0.2 | 4.910219e-51 |
| 0.3 | 7.334741e-30 |
| 0.4 | 1.190158e-21 |
| 0.5 | 5.914218e-18 |
| 0.6 | 4.297437e-16 |
| 0.7 | 4.910144e-15 |
| 0.8 | 2.452935e-14 |
| 0.9 | 8.566452e-14 |
| 1 | 2.609735e-13 |
| 1.5 | 7.178678e-11 |
| 2 | 2.624758e-08 |
| 2.5 | 5.216206e-06 |
| 3 | 3.520511e-04 |
| 3.5 | 7.386351e-03 |
| 4 | 5.304289e-02 |
| 4.5 | 1.550582e-01 |
| 5 | 2.250324e-01 |
| 6 | 1.274141e-01 |
| 7 | 4.103554e-02 |
| 8 | 2.524422e-02 |
| 9 | 7.931312e-02 |
| 10 | 2.815813e+00 |

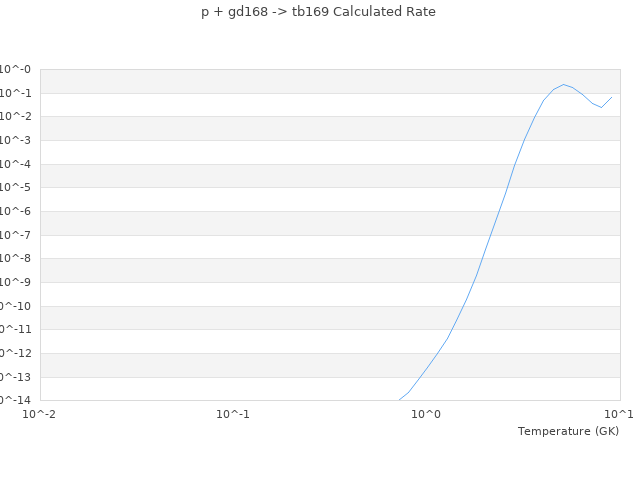

| View Graph | |
