Datapoints for gd170 -> n + gd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.086204e-255 |
| 0.15 | 1.099912e-164 |
| 0.2 | 2.833452e-119 |
| 0.3 | 8.415469e-74 |
| 0.4 | 5.033979e-51 |
| 0.5 | 2.454600e-37 |
| 0.6 | 3.379483e-28 |
| 0.7 | 1.162794e-21 |
| 0.8 | 9.421022e-17 |
| 0.9 | 6.254389e-13 |
| 1 | 7.192704e-10 |
| 1.5 | 1.135587e+00 |
| 2 | 4.510768e+04 |
| 2.5 | 2.492315e+07 |
| 3 | 1.582054e+09 |
| 3.5 | 2.859644e+10 |
| 4 | 2.320883e+11 |
| 4.5 | 1.090291e+12 |
| 5 | 3.454951e+12 |
| 6 | 1.524954e+13 |
| 7 | 3.175776e+13 |
| 8 | 3.948781e+13 |
| 9 | 3.348375e+13 |
| 10 | 2.100325e+13 |

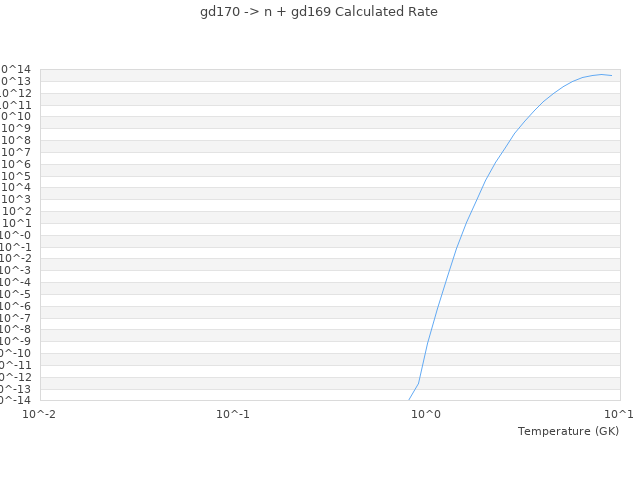

| View Graph | |
