Datapoints for n + gd169 -> gd170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.329090e+06 |
| 0.15 | 8.118963e+06 |
| 0.2 | 8.440019e+06 |
| 0.3 | 8.477389e+06 |
| 0.4 | 8.209821e+06 |
| 0.5 | 7.852824e+06 |
| 0.6 | 7.477943e+06 |
| 0.7 | 7.110718e+06 |
| 0.8 | 6.759975e+06 |
| 0.9 | 6.428025e+06 |
| 1 | 6.114602e+06 |
| 1.5 | 4.777691e+06 |
| 2 | 3.716802e+06 |
| 2.5 | 2.849407e+06 |
| 3 | 2.139601e+06 |
| 3.5 | 1.568133e+06 |
| 4 | 1.119493e+06 |
| 4.5 | 7.775644e+05 |
| 5 | 5.251019e+05 |
| 6 | 2.198632e+05 |
| 7 | 8.213254e+04 |
| 8 | 2.740204e+04 |
| 9 | 8.179045e+03 |
| 10 | 2.188471e+03 |

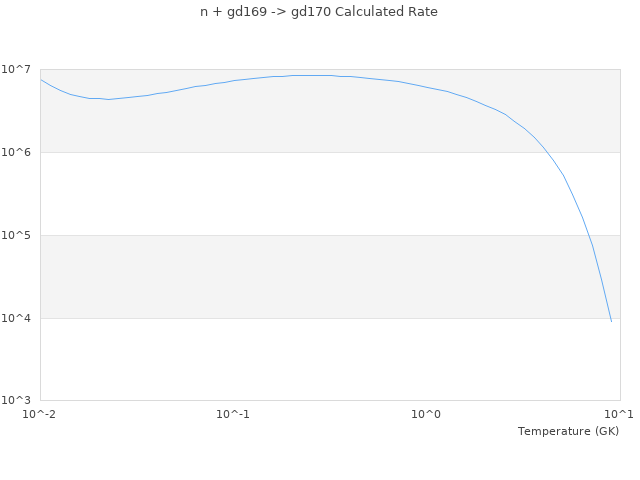

| View Graph | |
