Datapoints for p + gd169 -> tb170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.603352e-125 |
| 0.15 | 2.735567e-75 |
| 0.2 | 3.227916e-51 |
| 0.3 | 5.093716e-30 |
| 0.4 | 8.298776e-22 |
| 0.5 | 4.060336e-18 |
| 0.6 | 2.881157e-16 |
| 0.7 | 3.204378e-15 |
| 0.8 | 1.556954e-14 |
| 0.9 | 5.290759e-14 |
| 1 | 1.570042e-13 |
| 1.5 | 3.876979e-11 |
| 2 | 1.322920e-08 |
| 2.5 | 2.532284e-06 |
| 3 | 1.687091e-04 |
| 3.5 | 3.561701e-03 |
| 4 | 2.612843e-02 |
| 4.5 | 7.897158e-02 |
| 5 | 1.196501e-01 |
| 6 | 7.547364e-02 |
| 7 | 2.764429e-02 |
| 8 | 1.959827e-02 |
| 9 | 7.153010e-02 |
| 10 | 2.962507e+00 |

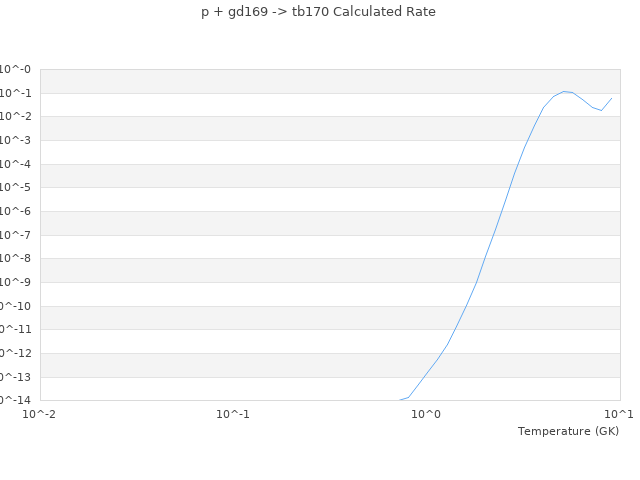

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
