Datapoints for n + tb169 -> p + gd169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 5.635047e-223 |
| 0.2 | 7.283894e-167 |
| 0.3 | 8.538107e-112 |
| 0.4 | 6.840308e-85 |
| 0.5 | 5.857328e-69 |
| 0.6 | 2.310814e-58 |
| 0.7 | 9.671944e-51 |
| 0.8 | 6.113668e-45 |
| 0.9 | 2.464536e-40 |
| 1 | 1.474438e-36 |
| 1.5 | 2.648030e-24 |
| 2 | 3.113739e-17 |
| 2.5 | 1.600170e-12 |
| 3 | 3.415611e-09 |
| 3.5 | 8.894797e-07 |
| 4 | 5.296141e-05 |
| 4.5 | 1.091555e-03 |
| 5 | 1.047782e-02 |
| 6 | 2.276837e-01 |
| 7 | 1.976543e+00 |
| 8 | 1.624154e+01 |
| 9 | 2.331406e+02 |
| 10 | 9.195623e+03 |

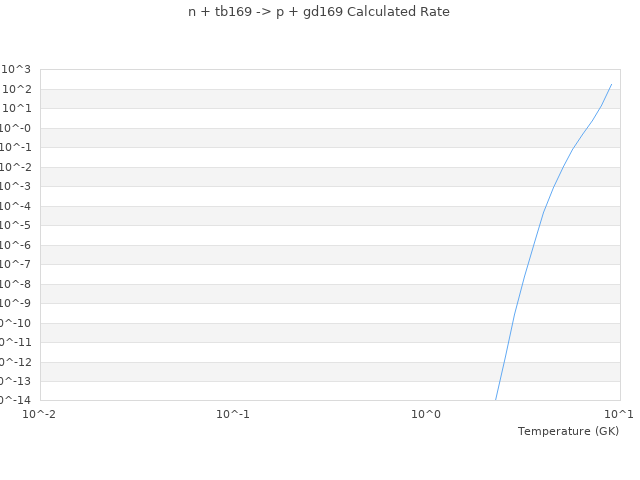

| View Graph | |
