Datapoints for p + gd172 -> he4 + eu169
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.488328e-187 |
| 0.15 | 6.263047e-120 |
| 0.2 | 2.519179e-85 |
| 0.3 | 2.427329e-52 |
| 0.4 | 5.546013e-38 |
| 0.5 | 1.005956e-30 |
| 0.6 | 1.144130e-26 |
| 0.7 | 3.309007e-24 |
| 0.8 | 1.367631e-22 |
| 0.9 | 1.933980e-21 |
| 1 | 1.492523e-20 |
| 1.5 | 1.968076e-17 |
| 2 | 9.398512e-15 |
| 2.5 | 2.965910e-12 |
| 3 | 4.839897e-10 |
| 3.5 | 3.568354e-08 |
| 4 | 1.181229e-06 |
| 4.5 | 1.882622e-05 |
| 5 | 1.608750e-04 |
| 6 | 2.970206e-03 |
| 7 | 1.990790e-02 |
| 8 | 1.184954e-01 |
| 9 | 1.346010e+00 |
| 10 | 5.540010e+01 |

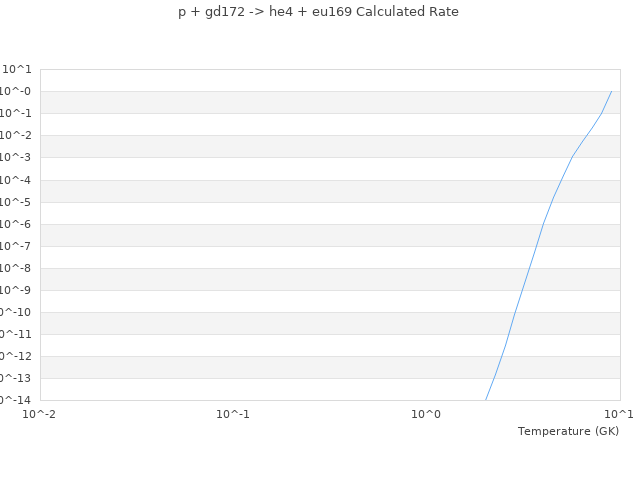

| View Graph | |
