Datapoints for n + gd173 -> gd174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.282401e+06 |
| 0.15 | 5.170090e+06 |
| 0.2 | 6.262927e+06 |
| 0.3 | 6.906051e+06 |
| 0.4 | 6.660140e+06 |
| 0.5 | 6.162257e+06 |
| 0.6 | 5.629449e+06 |
| 0.7 | 5.130367e+06 |
| 0.8 | 4.682491e+06 |
| 0.9 | 4.285896e+06 |
| 1 | 3.935261e+06 |
| 1.5 | 2.667851e+06 |
| 2 | 1.868654e+06 |
| 2.5 | 1.313740e+06 |
| 3 | 9.130820e+05 |
| 3.5 | 6.224784e+05 |
| 4 | 4.145609e+05 |
| 4.5 | 2.691622e+05 |
| 5 | 1.702160e+05 |
| 6 | 6.285294e+04 |
| 7 | 2.089963e+04 |
| 8 | 6.280612e+03 |
| 9 | 1.712972e+03 |
| 10 | 4.258116e+02 |

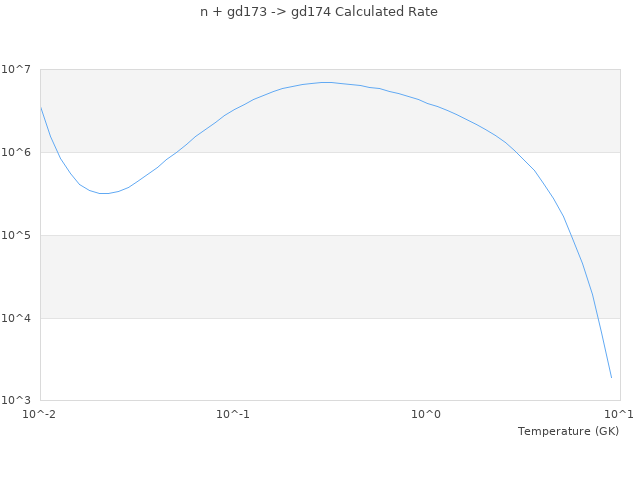

| View Graph | |
