Datapoints for p + gd174 -> n + tb174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.118727e-67 |
| 0.15 | 5.070077e-44 |
| 0.2 | 8.902859e-33 |
| 0.3 | 1.403104e-22 |
| 0.4 | 4.159777e-18 |
| 0.5 | 1.257287e-15 |
| 0.6 | 5.420028e-14 |
| 0.7 | 9.131415e-13 |
| 0.8 | 9.329567e-12 |
| 0.9 | 7.123747e-11 |
| 1 | 4.517744e-10 |
| 1.5 | 1.027301e-06 |
| 2 | 4.506026e-04 |
| 2.5 | 5.172669e-02 |
| 3 | 1.883679e+00 |
| 3.5 | 2.655628e+01 |
| 4 | 1.755559e+02 |
| 4.5 | 6.475745e+02 |
| 5 | 1.553927e+03 |
| 6 | 4.130626e+03 |
| 7 | 7.871702e+03 |
| 8 | 2.073622e+04 |
| 9 | 1.246046e+05 |
| 10 | 2.516052e+06 |

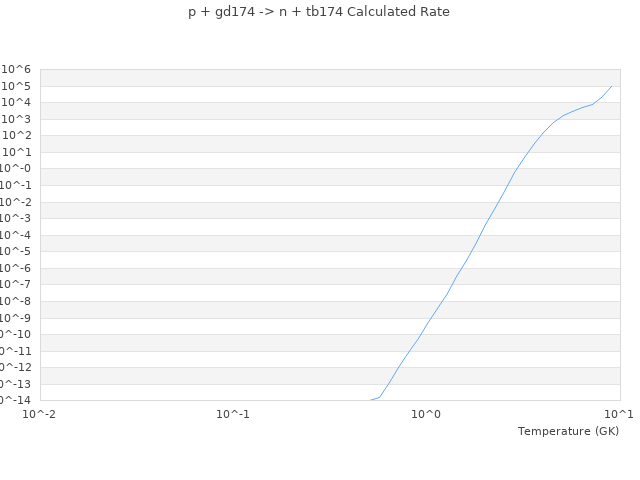

| View Graph | |
