Datapoints for n + gd175 -> gd176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.977213e+06 |
| 0.15 | 2.644295e+06 |
| 0.2 | 2.985712e+06 |
| 0.3 | 3.168410e+06 |
| 0.4 | 3.084790e+06 |
| 0.5 | 2.922843e+06 |
| 0.6 | 2.744454e+06 |
| 0.7 | 2.570356e+06 |
| 0.8 | 2.406989e+06 |
| 0.9 | 2.255641e+06 |
| 1 | 2.115766e+06 |
| 1.5 | 1.549945e+06 |
| 2 | 1.132952e+06 |
| 2.5 | 8.137896e+05 |
| 3 | 5.702520e+05 |
| 3.5 | 3.885994e+05 |
| 4 | 2.572240e+05 |
| 4.5 | 1.653558e+05 |
| 5 | 1.032687e+05 |
| 6 | 3.702076e+04 |
| 7 | 1.191733e+04 |
| 8 | 3.465004e+03 |
| 9 | 9.149100e+02 |
| 10 | 2.204566e+02 |

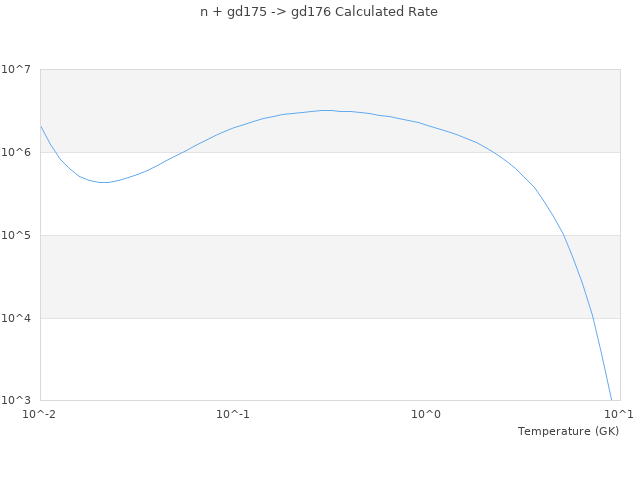

| View Graph | |
