Datapoints for gd177 -> n + gd176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.463220e-128 |
| 0.15 | 7.275399e-81 |
| 0.2 | 2.469647e-57 |
| 0.3 | 9.681027e-34 |
| 0.4 | 6.921487e-22 |
| 0.5 | 9.882379e-15 |
| 0.6 | 6.256124e-10 |
| 0.7 | 1.779010e-06 |
| 0.8 | 7.234839e-04 |
| 0.9 | 8.009636e-02 |
| 1 | 3.552994e+00 |
| 1.5 | 3.756460e+05 |
| 2 | 1.376510e+08 |
| 2.5 | 4.735305e+09 |
| 3 | 4.694778e+10 |
| 3.5 | 2.196328e+11 |
| 4 | 6.250046e+11 |
| 4.5 | 1.251757e+12 |
| 5 | 1.932032e+12 |
| 6 | 2.629191e+12 |
| 7 | 2.120509e+12 |
| 8 | 1.191706e+12 |
| 9 | 5.147384e+11 |
| 10 | 1.821913e+11 |

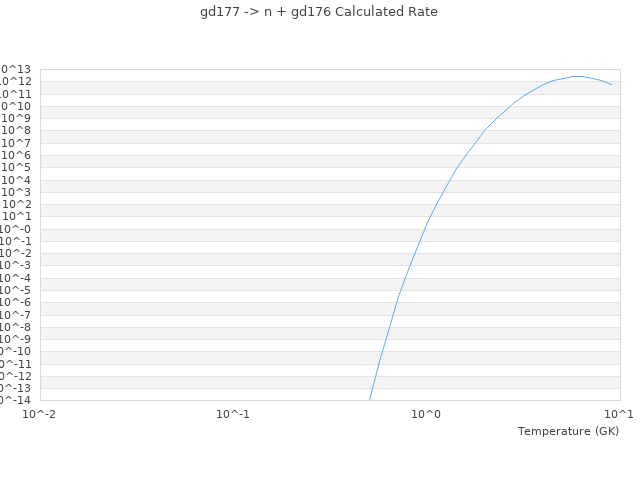

| View Graph | |
