Datapoints for p + gd176 -> tb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.789150e-127 |
| 0.15 | 9.588768e-77 |
| 0.2 | 2.458953e-52 |
| 0.3 | 7.535224e-31 |
| 0.4 | 1.592391e-22 |
| 0.5 | 8.891230e-19 |
| 0.6 | 6.872323e-17 |
| 0.7 | 8.178730e-16 |
| 0.8 | 4.223667e-15 |
| 0.9 | 1.521719e-14 |
| 1 | 4.783282e-14 |
| 1.5 | 1.555462e-11 |
| 2 | 6.688767e-09 |
| 2.5 | 1.518563e-06 |
| 3 | 1.129746e-04 |
| 3.5 | 2.525427e-03 |
| 4 | 1.876937e-02 |
| 4.5 | 5.548660e-02 |
| 5 | 8.004316e-02 |
| 6 | 4.344805e-02 |
| 7 | 1.328855e-02 |
| 8 | 7.925268e-03 |
| 9 | 2.523404e-02 |
| 10 | 9.669587e-01 |

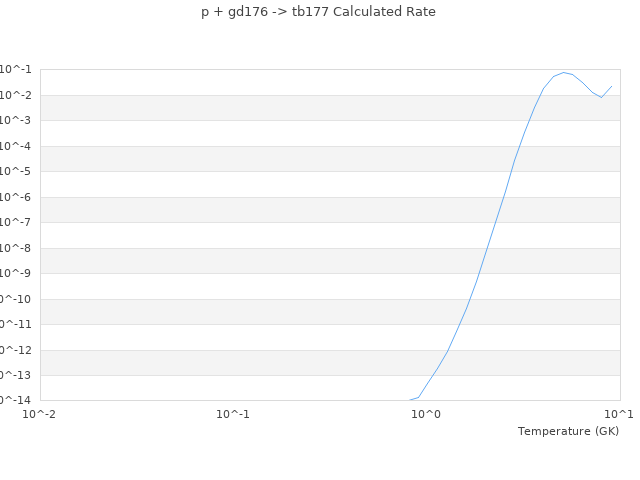

| View Graph | |
