Datapoints for n + tb176 -> p + gd176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 5.289125e-270 |
| 0.2 | 3.029135e-202 |
| 0.3 | 1.533784e-135 |
| 0.4 | 8.088274e-103 |
| 0.5 | 2.174078e-83 |
| 0.6 | 1.866628e-70 |
| 0.7 | 3.703655e-61 |
| 0.8 | 4.280612e-54 |
| 0.9 | 1.670946e-48 |
| 1 | 6.199172e-44 |
| 1.5 | 2.836567e-29 |
| 2 | 5.597597e-21 |
| 2.5 | 1.582339e-15 |
| 3 | 1.047651e-11 |
| 3.5 | 6.051131e-09 |
| 4 | 6.454865e-07 |
| 4.5 | 2.064346e-05 |
| 5 | 2.780940e-04 |
| 6 | 9.782368e-03 |
| 7 | 1.176107e-01 |
| 8 | 1.235141e+00 |
| 9 | 2.187890e+01 |
| 10 | 1.058537e+03 |

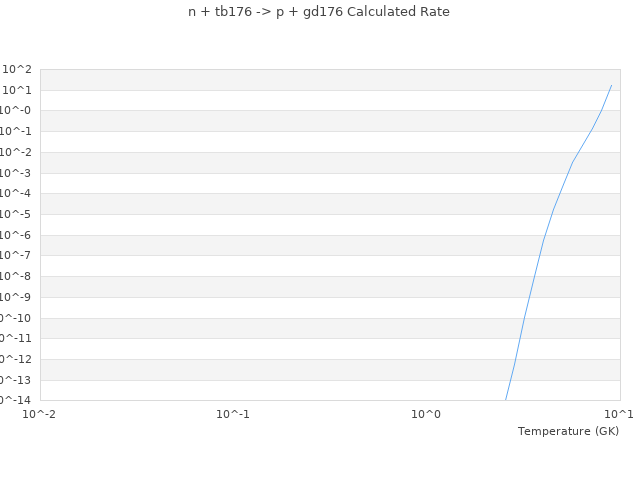

| View Graph | |
