Datapoints for p + gd176 -> n + tb176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.997554e-68 |
| 0.15 | 4.711629e-44 |
| 0.2 | 8.783329e-33 |
| 0.3 | 1.447630e-22 |
| 0.4 | 4.355380e-18 |
| 0.5 | 1.324986e-15 |
| 0.6 | 5.734621e-14 |
| 0.7 | 9.692639e-13 |
| 0.8 | 9.933240e-12 |
| 0.9 | 7.607823e-11 |
| 1 | 4.839514e-10 |
| 1.5 | 1.116277e-06 |
| 2 | 4.945790e-04 |
| 2.5 | 5.705410e-02 |
| 3 | 2.078290e+00 |
| 3.5 | 2.920108e+01 |
| 4 | 1.918687e+02 |
| 4.5 | 7.021698e+02 |
| 5 | 1.669880e+03 |
| 6 | 4.357011e+03 |
| 7 | 8.170111e+03 |
| 8 | 2.129488e+04 |
| 9 | 1.276014e+05 |
| 10 | 2.593898e+06 |

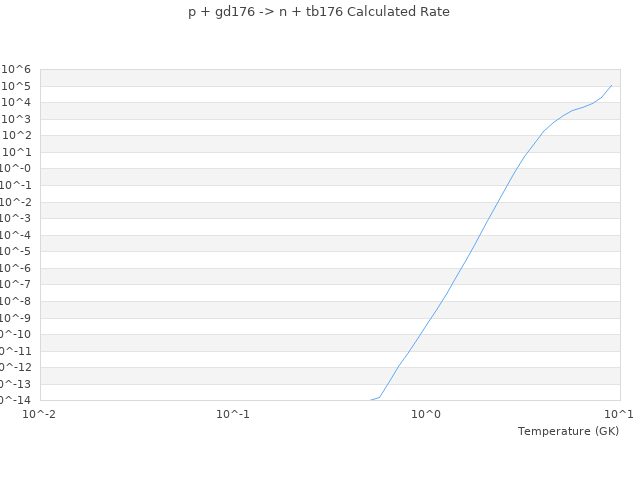

| View Graph | |
