Datapoints for n + gd177 -> gd178
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.438317e+06 |
| 0.15 | 1.575839e+06 |
| 0.2 | 1.562704e+06 |
| 0.3 | 1.436380e+06 |
| 0.4 | 1.313908e+06 |
| 0.5 | 1.218660e+06 |
| 0.6 | 1.145697e+06 |
| 0.7 | 1.088360e+06 |
| 0.8 | 1.041586e+06 |
| 0.9 | 1.001844e+06 |
| 1 | 9.667128e+05 |
| 1.5 | 8.172158e+05 |
| 2 | 6.714423e+05 |
| 2.5 | 5.246810e+05 |
| 3 | 3.887486e+05 |
| 3.5 | 2.737568e+05 |
| 4 | 1.839393e+05 |
| 4.5 | 1.184072e+05 |
| 5 | 7.330813e+04 |
| 6 | 2.534044e+04 |
| 7 | 7.778049e+03 |
| 8 | 2.159364e+03 |
| 9 | 5.501675e+02 |
| 10 | 1.301452e+02 |

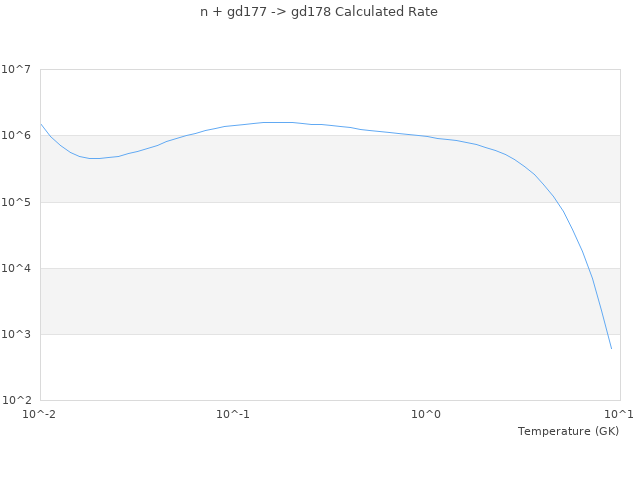

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
