Datapoints for p + gd177 -> tb178
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.134557e-127 |
| 0.15 | 5.611551e-77 |
| 0.2 | 1.503767e-52 |
| 0.3 | 4.808590e-31 |
| 0.4 | 1.029234e-22 |
| 0.5 | 5.735617e-19 |
| 0.6 | 4.389522e-17 |
| 0.7 | 5.149516e-16 |
| 0.8 | 2.615061e-15 |
| 0.9 | 9.253612e-15 |
| 1 | 2.855564e-14 |
| 1.5 | 8.515789e-12 |
| 2 | 3.426698e-09 |
| 2.5 | 7.441256e-07 |
| 3 | 5.399373e-05 |
| 3.5 | 1.196898e-03 |
| 4 | 8.945592e-03 |
| 4.5 | 2.690915e-02 |
| 5 | 3.989344e-02 |
| 6 | 2.342313e-02 |
| 7 | 7.938642e-03 |
| 8 | 5.337690e-03 |
| 9 | 1.939236e-02 |
| 10 | 8.548332e-01 |

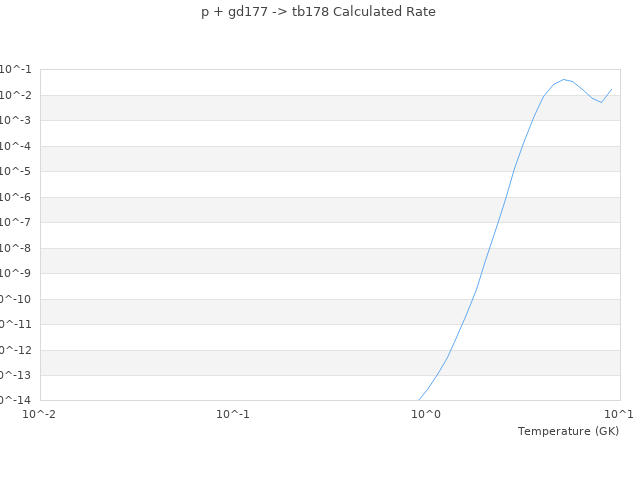

| View Graph | |
