Datapoints for p + gd177 -> n + tb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.180888e-67 |
| 0.15 | 6.790619e-44 |
| 0.2 | 1.316538e-32 |
| 0.3 | 2.215955e-22 |
| 0.4 | 6.620101e-18 |
| 0.5 | 1.980578e-15 |
| 0.6 | 8.400670e-14 |
| 0.7 | 1.390128e-12 |
| 0.8 | 1.394987e-11 |
| 0.9 | 1.046883e-10 |
| 1 | 6.531229e-10 |
| 1.5 | 1.387809e-06 |
| 2 | 5.790919e-04 |
| 2.5 | 6.395015e-02 |
| 3 | 2.256612e+00 |
| 3.5 | 3.098346e+01 |
| 4 | 2.002258e+02 |
| 4.5 | 7.241486e+02 |
| 5 | 1.707983e+03 |
| 6 | 4.414289e+03 |
| 7 | 8.240707e+03 |
| 8 | 2.141414e+04 |
| 9 | 1.277974e+05 |
| 10 | 2.580185e+06 |

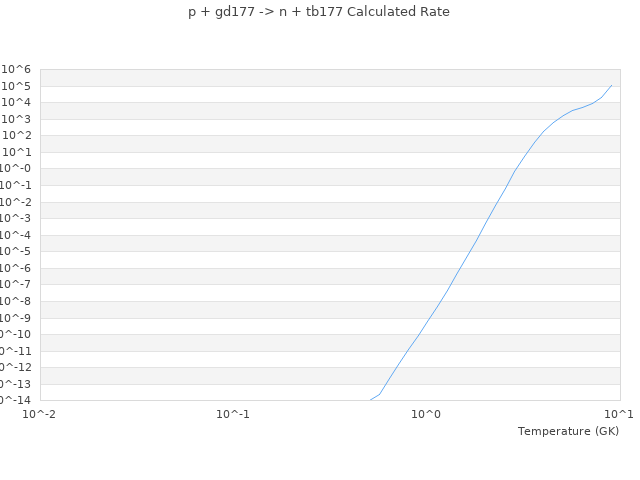

| View Graph | |
