Datapoints for he4 + eu177 -> p + gd180
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 4.407771e-276 |
| 0.3 | 1.846353e-180 |
| 0.4 | 2.405843e-134 |
| 0.5 | 6.933263e-108 |
| 0.6 | 5.462561e-91 |
| 0.7 | 2.328748e-79 |
| 0.8 | 6.906400e-71 |
| 0.9 | 1.975489e-64 |
| 1 | 2.516162e-59 |
| 1.5 | 8.028140e-44 |
| 2 | 3.339005e-35 |
| 2.5 | 3.107086e-29 |
| 3 | 1.024659e-24 |
| 3.5 | 3.625859e-21 |
| 4 | 2.460173e-18 |
| 4.5 | 4.639522e-16 |
| 5 | 3.188774e-14 |
| 6 | 1.657089e-11 |
| 7 | 1.310554e-09 |
| 8 | 4.265271e-08 |
| 9 | 1.241281e-06 |
| 10 | 6.004773e-05 |

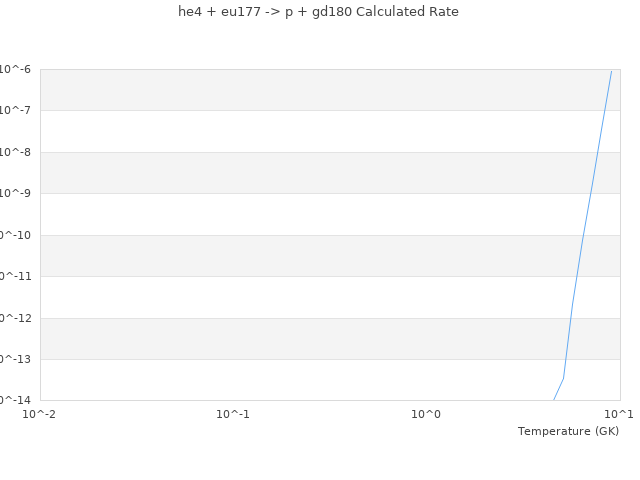

| View Graph | |
