Datapoints for n + gd186 -> gd187
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.892566e+04 |
| 0.15 | 5.464231e+04 |
| 0.2 | 5.306062e+04 |
| 0.3 | 4.726344e+04 |
| 0.4 | 4.352511e+04 |
| 0.5 | 4.184295e+04 |
| 0.6 | 4.152848e+04 |
| 0.7 | 4.209991e+04 |
| 0.8 | 4.324892e+04 |
| 0.9 | 4.476929e+04 |
| 1 | 4.651328e+04 |
| 1.5 | 5.529141e+04 |
| 2 | 5.915501e+04 |
| 2.5 | 5.574414e+04 |
| 3 | 4.670724e+04 |
| 3.5 | 3.533974e+04 |
| 4 | 2.451729e+04 |
| 4.5 | 1.580910e+04 |
| 5 | 9.585999e+03 |
| 6 | 3.045194e+03 |
| 7 | 8.372818e+02 |
| 8 | 2.087558e+02 |
| 9 | 4.888065e+01 |
| 10 | 1.104235e+01 |

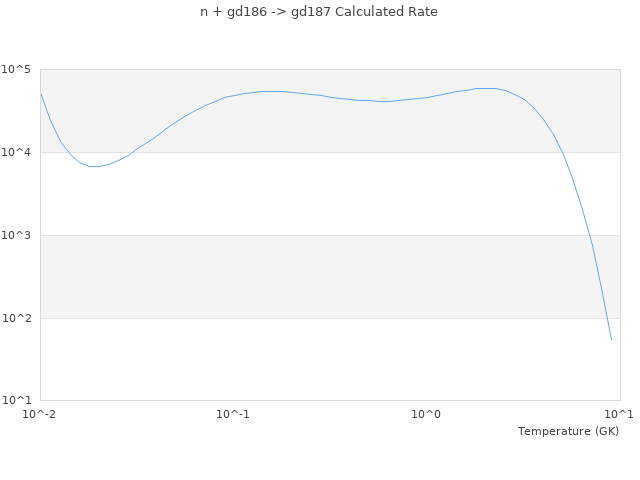

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
