Datapoints for tb187 -> p + gd186
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 2.656903e-249 |
| 0.4 | 4.047740e-184 |
| 0.5 | 2.987802e-146 |
| 0.6 | 1.314170e-121 |
| 0.7 | 2.857075e-104 |
| 0.8 | 2.360254e-91 |
| 0.9 | 2.684654e-81 |
| 1 | 3.406866e-73 |
| 1.5 | 8.450198e-48 |
| 2 | 1.179424e-33 |
| 2.5 | 2.390946e-24 |
| 3 | 8.170297e-18 |
| 3.5 | 4.078973e-13 |
| 4 | 1.015605e-09 |
| 4.5 | 2.828385e-07 |
| 5 | 1.578795e-05 |
| 6 | 2.165813e-03 |
| 7 | 3.674831e-02 |
| 8 | 4.790369e-01 |
| 9 | 1.827632e+01 |
| 10 | 5.628594e+03 |

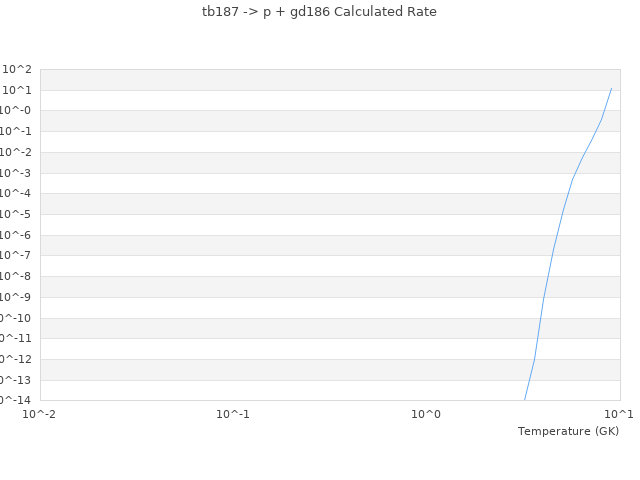

| View Graph | |
