Datapoints for p + gd186 -> n + tb186
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.565473e-68 |
| 0.15 | 2.895016e-44 |
| 0.2 | 7.429438e-33 |
| 0.3 | 1.540924e-22 |
| 0.4 | 4.920070e-18 |
| 0.5 | 1.513418e-15 |
| 0.6 | 6.525048e-14 |
| 0.7 | 1.094437e-12 |
| 0.8 | 1.113132e-11 |
| 0.9 | 8.472835e-11 |
| 1 | 5.365624e-10 |
| 1.5 | 1.233761e-06 |
| 2 | 5.519791e-04 |
| 2.5 | 6.418434e-02 |
| 3 | 2.341336e+00 |
| 3.5 | 3.270938e+01 |
| 4 | 2.123889e+02 |
| 4.5 | 7.646151e+02 |
| 5 | 1.783659e+03 |
| 6 | 4.467922e+03 |
| 7 | 8.094565e+03 |
| 8 | 2.070312e+04 |
| 9 | 1.245368e+05 |
| 10 | 2.614777e+06 |

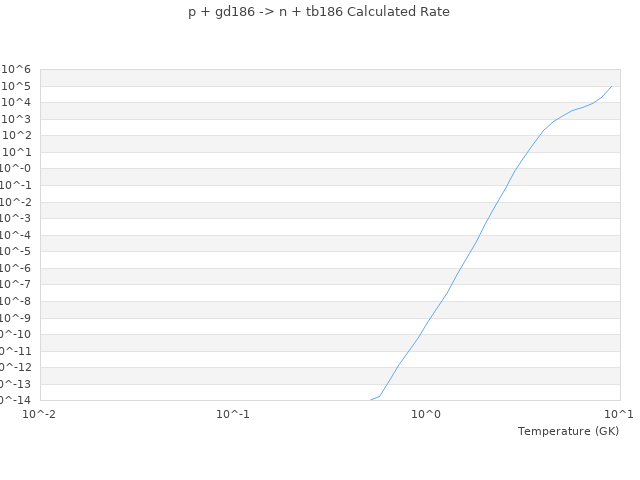

| View Graph | |
