Datapoints for gd189 -> n + gd188
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.115300e-113 |
| 0.15 | 8.216532e-71 |
| 0.2 | 8.424326e-50 |
| 0.3 | 9.218992e-29 |
| 0.4 | 3.351924e-18 |
| 0.5 | 7.938448e-12 |
| 0.6 | 1.518966e-07 |
| 0.7 | 1.846553e-04 |
| 0.8 | 3.993458e-02 |
| 0.9 | 2.720811e+00 |
| 1 | 8.227304e+01 |
| 1.5 | 2.878248e+06 |
| 2 | 6.268295e+08 |
| 2.5 | 1.585596e+10 |
| 3 | 1.270249e+11 |
| 3.5 | 5.037848e+11 |
| 4 | 1.249831e+12 |
| 4.5 | 2.224073e+12 |
| 5 | 3.096318e+12 |
| 6 | 3.570447e+12 |
| 7 | 2.579845e+12 |
| 8 | 1.381523e+12 |
| 9 | 6.089341e+11 |
| 10 | 2.370200e+11 |

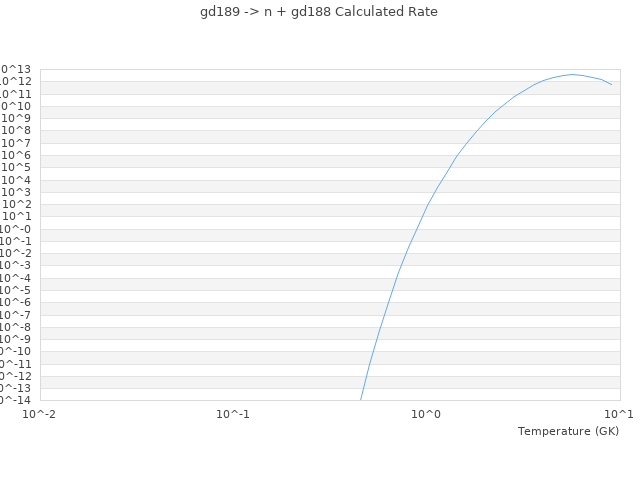

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
