Datapoints for n + gd188 -> gd189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.203576e+04 |
| 0.15 | 3.557683e+04 |
| 0.2 | 3.363166e+04 |
| 0.3 | 2.843821e+04 |
| 0.4 | 2.530324e+04 |
| 0.5 | 2.387236e+04 |
| 0.6 | 2.351605e+04 |
| 0.7 | 2.385024e+04 |
| 0.8 | 2.464865e+04 |
| 0.9 | 2.576867e+04 |
| 1 | 2.711177e+04 |
| 1.5 | 3.493978e+04 |
| 2 | 4.065814e+04 |
| 2.5 | 4.130039e+04 |
| 3 | 3.689472e+04 |
| 3.5 | 2.946098e+04 |
| 4 | 2.138582e+04 |
| 4.5 | 1.432948e+04 |
| 5 | 8.980889e+03 |
| 6 | 3.016250e+03 |
| 7 | 8.711473e+02 |
| 8 | 2.282960e+02 |
| 9 | 5.652617e+01 |
| 10 | 1.364088e+01 |

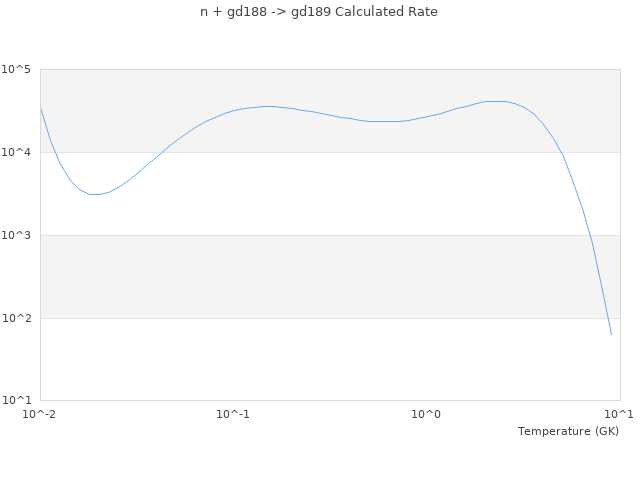

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
