Datapoints for tb189 -> p + gd188
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.124579e-253 |
| 0.4 | 3.070288e-187 |
| 0.5 | 1.263421e-148 |
| 0.6 | 1.735574e-123 |
| 0.7 | 8.484233e-106 |
| 0.8 | 1.285303e-92 |
| 0.9 | 2.342326e-82 |
| 1 | 4.335229e-74 |
| 1.5 | 3.366732e-48 |
| 2 | 8.441623e-34 |
| 2.5 | 2.460040e-24 |
| 3 | 1.079120e-17 |
| 3.5 | 6.473877e-13 |
| 4 | 1.857119e-09 |
| 4.5 | 5.791609e-07 |
| 5 | 3.548592e-05 |
| 6 | 5.639972e-03 |
| 7 | 1.074774e-01 |
| 8 | 1.549285e+00 |
| 9 | 6.497977e+01 |
| 10 | 2.201180e+04 |

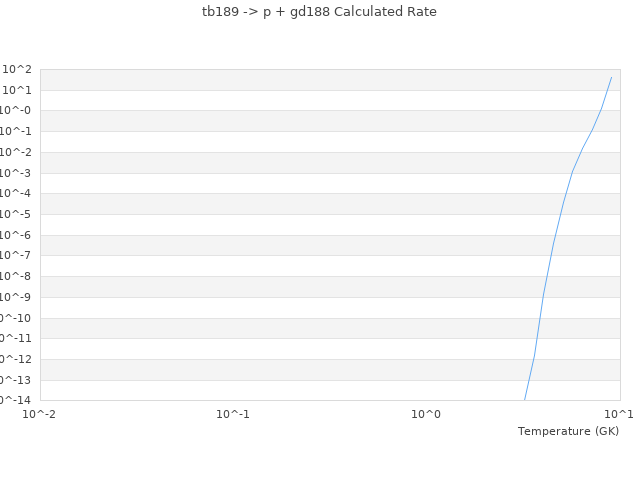

| View Graph | |
