Datapoints for p + gd188 -> n + tb188
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.861623e-68 |
| 0.15 | 2.475636e-44 |
| 0.2 | 6.763990e-33 |
| 0.3 | 1.454666e-22 |
| 0.4 | 4.657345e-18 |
| 0.5 | 1.426303e-15 |
| 0.6 | 6.118130e-14 |
| 0.7 | 1.021976e-12 |
| 0.8 | 1.036541e-11 |
| 0.9 | 7.877602e-11 |
| 1 | 4.986072e-10 |
| 1.5 | 1.153657e-06 |
| 2 | 5.216235e-04 |
| 2.5 | 6.119140e-02 |
| 3 | 2.244557e+00 |
| 3.5 | 3.143068e+01 |
| 4 | 2.040325e+02 |
| 4.5 | 7.329847e+02 |
| 5 | 1.704408e+03 |
| 6 | 4.239796e+03 |
| 7 | 7.651626e+03 |
| 8 | 1.962747e+04 |
| 9 | 1.195586e+05 |
| 10 | 2.572292e+06 |

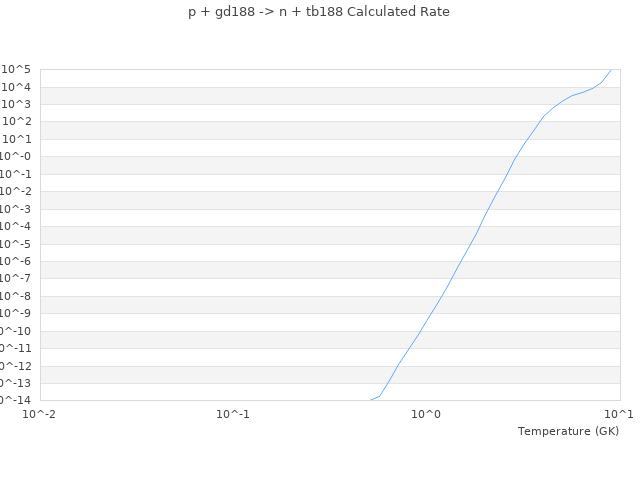

| View Graph | |
