Datapoints for gd190 -> n + gd189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.188564e-150 |
| 0.15 | 6.402724e-96 |
| 0.2 | 1.564386e-68 |
| 0.3 | 4.219561e-41 |
| 0.4 | 2.417376e-27 |
| 0.5 | 4.682711e-19 |
| 0.6 | 1.659080e-13 |
| 0.7 | 1.594288e-09 |
| 0.8 | 1.600103e-06 |
| 0.9 | 3.548048e-04 |
| 1 | 2.725266e-02 |
| 1.5 | 1.415161e+04 |
| 2 | 1.091214e+07 |
| 2.5 | 5.717573e+08 |
| 3 | 7.428118e+09 |
| 3.5 | 4.214307e+10 |
| 4 | 1.395123e+11 |
| 4.5 | 3.179430e+11 |
| 5 | 5.524465e+11 |
| 6 | 9.465629e+11 |
| 7 | 9.750769e+11 |
| 8 | 7.202042e+11 |
| 9 | 4.236102e+11 |
| 10 | 2.122619e+11 |

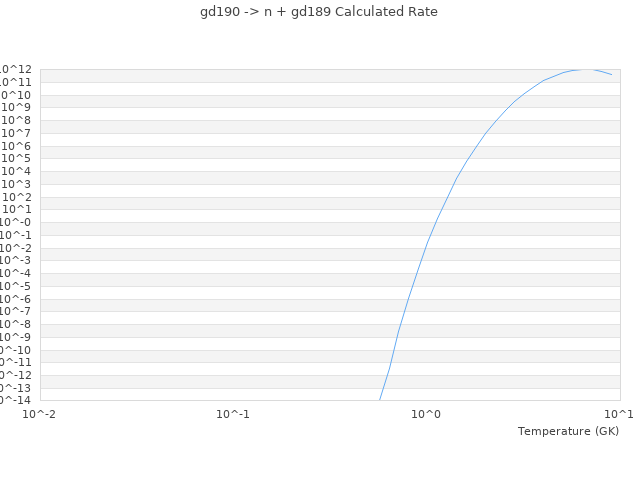

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
