Datapoints for p + gd189 -> n + tb189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.600958e-68 |
| 0.15 | 2.247289e-44 |
| 0.2 | 6.256684e-33 |
| 0.3 | 1.355078e-22 |
| 0.4 | 4.318432e-18 |
| 0.5 | 1.313042e-15 |
| 0.6 | 5.591006e-14 |
| 0.7 | 9.275761e-13 |
| 0.8 | 9.350828e-12 |
| 0.9 | 7.068664e-11 |
| 1 | 4.453341e-10 |
| 1.5 | 1.015123e-06 |
| 2 | 4.563406e-04 |
| 2.5 | 5.350514e-02 |
| 3 | 1.967830e+00 |
| 3.5 | 2.768357e+01 |
| 4 | 1.807673e+02 |
| 4.5 | 6.537355e+02 |
| 5 | 1.530954e+03 |
| 6 | 3.864748e+03 |
| 7 | 7.076846e+03 |
| 8 | 1.840393e+04 |
| 9 | 1.135221e+05 |
| 10 | 2.469863e+06 |

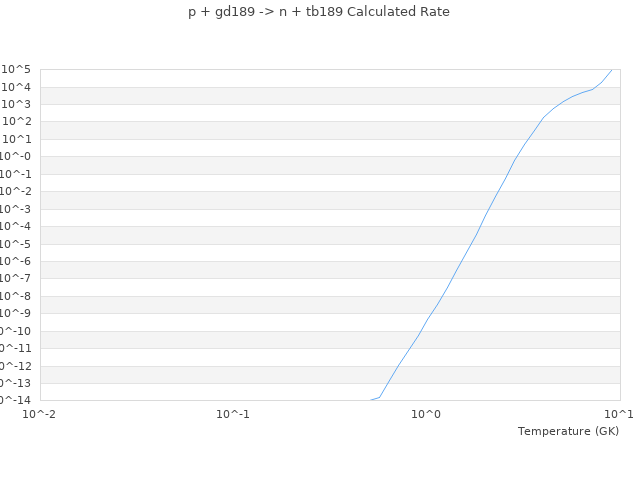

| View Graph | |
