Datapoints for n + gd192 -> gd193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 6.280200e-16 |
| 0.15 | 5.946165e-11 |
| 0.2 | 1.280788e-08 |
| 0.3 | 2.900129e-06 |
| 0.4 | 5.690618e-05 |
| 0.5 | 4.275430e-04 |
| 0.6 | 1.940045e-03 |
| 0.7 | 6.438705e-03 |
| 0.8 | 1.723443e-02 |
| 0.9 | 3.938479e-02 |
| 1 | 7.968547e-02 |
| 1.5 | 8.486129e-01 |
| 2 | 3.022599e+00 |
| 2.5 | 6.027793e+00 |
| 3 | 8.433867e+00 |
| 3.5 | 9.312173e+00 |
| 4 | 8.683459e+00 |
| 4.5 | 7.130928e+00 |
| 5 | 5.299205e+00 |
| 6 | 2.320036e+00 |
| 7 | 7.970362e-01 |
| 8 | 2.249973e-01 |
| 9 | 5.351629e-02 |
| 10 | 1.087782e-02 |

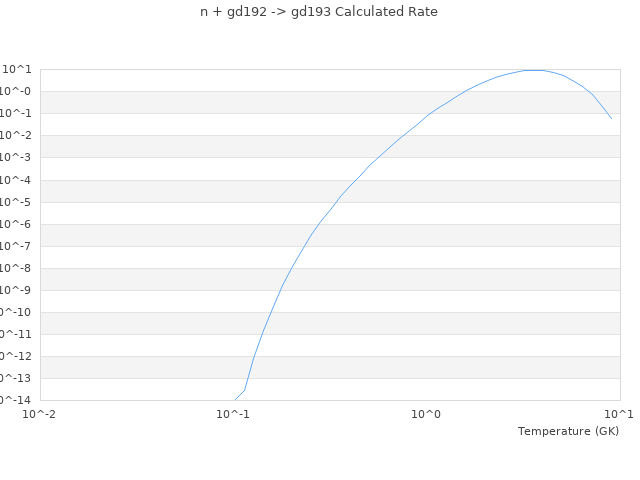

| View Graph | |
