Datapoints for gd193 -> n + gd192
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.866050e+05 |
| 0.15 | 4.244753e+06 |
| 0.2 | 1.118389e+07 |
| 0.3 | 3.696259e+07 |
| 0.4 | 9.953109e+07 |
| 0.5 | 2.450032e+08 |
| 0.6 | 5.556407e+08 |
| 0.7 | 1.164700e+09 |
| 0.8 | 2.268874e+09 |
| 0.9 | 4.135029e+09 |
| 1 | 7.098580e+09 |
| 1.5 | 5.280285e+10 |
| 2 | 1.785442e+11 |
| 2.5 | 3.723008e+11 |
| 3 | 5.643362e+11 |
| 3.5 | 6.838880e+11 |
| 4 | 7.024520e+11 |
| 4.5 | 6.350388e+11 |
| 5 | 5.182059e+11 |
| 6 | 2.707448e+11 |
| 7 | 1.093868e+11 |
| 8 | 3.582227e+10 |
| 9 | 9.765429e+09 |
| 10 | 2.251045e+09 |

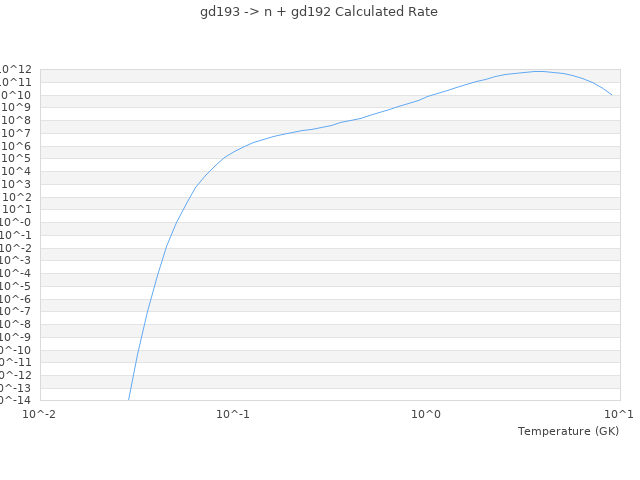

| View Graph | |
