Datapoints for p + gd192 -> tb193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.470688e-131 |
| 0.15 | 1.913154e-79 |
| 0.2 | 2.049025e-54 |
| 0.3 | 2.044083e-32 |
| 0.4 | 6.417020e-24 |
| 0.5 | 4.109235e-20 |
| 0.6 | 3.307178e-18 |
| 0.7 | 3.951865e-17 |
| 0.8 | 2.025343e-16 |
| 0.9 | 7.233225e-16 |
| 1 | 2.261018e-15 |
| 1.5 | 7.670754e-13 |
| 2 | 3.708380e-10 |
| 2.5 | 9.649419e-08 |
| 3 | 8.167256e-06 |
| 3.5 | 2.042143e-04 |
| 4 | 1.666592e-03 |
| 4.5 | 5.322424e-03 |
| 5 | 8.190789e-03 |
| 6 | 4.957162e-03 |
| 7 | 1.691680e-03 |
| 8 | 1.160748e-03 |
| 9 | 4.495156e-03 |
| 10 | 2.260742e-01 |

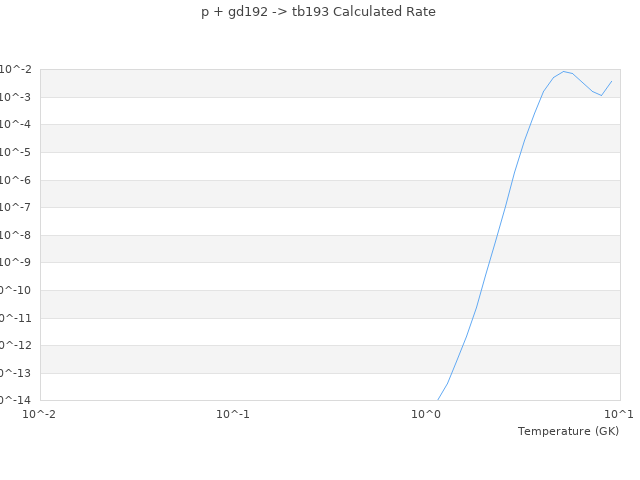

| View Graph | |
