Datapoints for gd194 -> n + gd193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.879743e-70 |
| 0.15 | 8.921821e-43 |
| 0.2 | 5.327455e-29 |
| 0.3 | 3.568225e-15 |
| 0.4 | 3.219956e-08 |
| 0.5 | 5.124851e-04 |
| 0.6 | 3.396355e-01 |
| 0.7 | 3.636881e+01 |
| 0.8 | 1.240417e+03 |
| 0.9 | 1.965580e+04 |
| 1 | 1.815677e+05 |
| 1.5 | 1.536082e+08 |
| 2 | 4.471776e+09 |
| 2.5 | 3.154878e+10 |
| 3 | 1.051799e+11 |
| 3.5 | 2.226260e+11 |
| 4 | 3.486197e+11 |
| 4.5 | 4.411932e+11 |
| 5 | 4.768616e+11 |
| 6 | 3.974377e+11 |
| 7 | 2.422726e+11 |
| 8 | 1.193861e+11 |
| 9 | 5.054179e+10 |
| 10 | 1.913034e+10 |

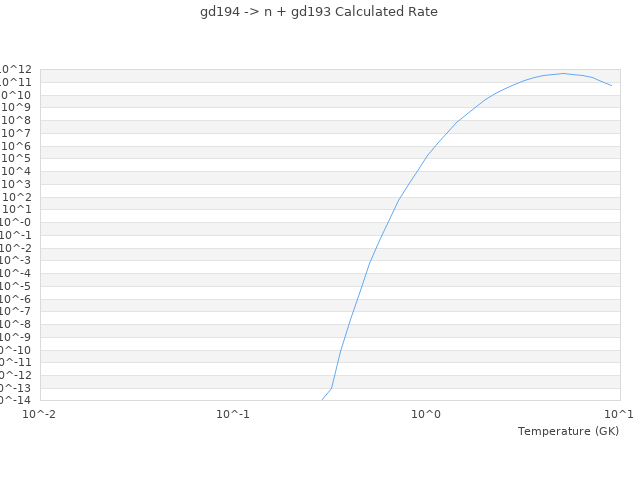

| View Graph | |
