Datapoints for p + gd193 -> n + tb193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.267313e-68 |
| 0.15 | 2.255352e-44 |
| 0.2 | 6.951314e-33 |
| 0.3 | 1.639841e-22 |
| 0.4 | 5.423373e-18 |
| 0.5 | 1.686212e-15 |
| 0.6 | 7.298852e-14 |
| 0.7 | 1.227345e-12 |
| 0.8 | 1.251777e-11 |
| 0.9 | 9.560606e-11 |
| 1 | 6.078690e-10 |
| 1.5 | 1.429961e-06 |
| 2 | 6.504211e-04 |
| 2.5 | 7.600507e-02 |
| 3 | 2.755380e+00 |
| 3.5 | 3.791523e+01 |
| 4 | 2.409439e+02 |
| 4.5 | 8.455351e+02 |
| 5 | 1.919091e+03 |
| 6 | 4.557897e+03 |
| 7 | 7.921221e+03 |
| 8 | 1.983699e+04 |
| 9 | 1.200450e+05 |
| 10 | 2.618289e+06 |

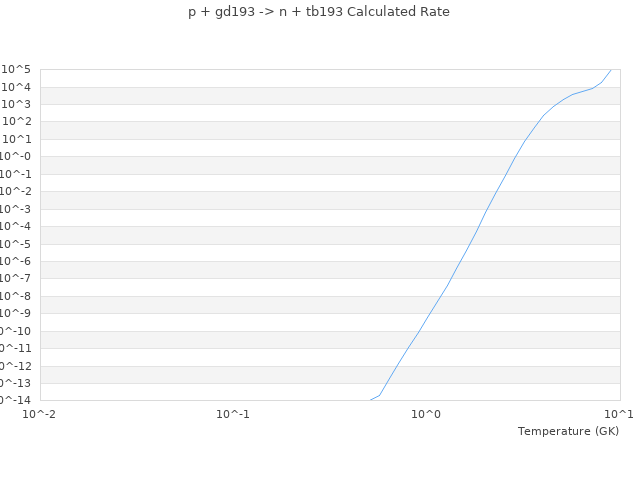

| View Graph | |
