Datapoints for p + gd194 -> n + tb194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.073663e-68 |
| 0.15 | 2.262260e-44 |
| 0.2 | 7.455410e-33 |
| 0.3 | 1.826579e-22 |
| 0.4 | 6.039713e-18 |
| 0.5 | 1.861589e-15 |
| 0.6 | 7.981543e-14 |
| 0.7 | 1.331134e-12 |
| 0.8 | 1.348870e-11 |
| 0.9 | 1.025299e-10 |
| 1 | 6.497274e-10 |
| 1.5 | 1.524005e-06 |
| 2 | 6.974973e-04 |
| 2.5 | 8.202907e-02 |
| 3 | 2.984856e+00 |
| 3.5 | 4.109105e+01 |
| 4 | 2.604546e+02 |
| 4.5 | 9.094468e+02 |
| 5 | 2.050290e+03 |
| 6 | 4.792180e+03 |
| 7 | 8.201233e+03 |
| 8 | 2.031839e+04 |
| 9 | 1.225964e+05 |
| 10 | 2.693803e+06 |

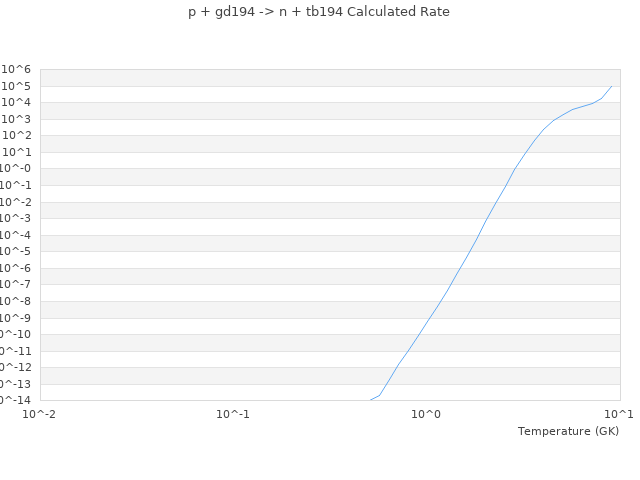

| View Graph | |
