Datapoints for n + dy197 -> he4 + gd194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.752266e-272 |
| 0.3 | 2.108319e-185 |
| 0.4 | 9.026856e-140 |
| 0.5 | 8.129002e-112 |
| 0.6 | 5.013868e-93 |
| 0.7 | 1.391261e-79 |
| 0.8 | 1.610874e-69 |
| 0.9 | 1.015408e-61 |
| 1 | 1.661851e-55 |
| 1.5 | 5.089295e-37 |
| 2 | 9.296163e-28 |
| 2.5 | 4.873165e-22 |
| 3 | 4.846442e-18 |
| 3.5 | 5.085629e-15 |
| 4 | 1.282268e-12 |
| 4.5 | 1.209646e-10 |
| 5 | 5.542020e-09 |
| 6 | 2.448073e-06 |
| 7 | 2.457285e-04 |
| 8 | 8.637801e-03 |
| 9 | 1.396682e-01 |
| 10 | 1.257422e+00 |

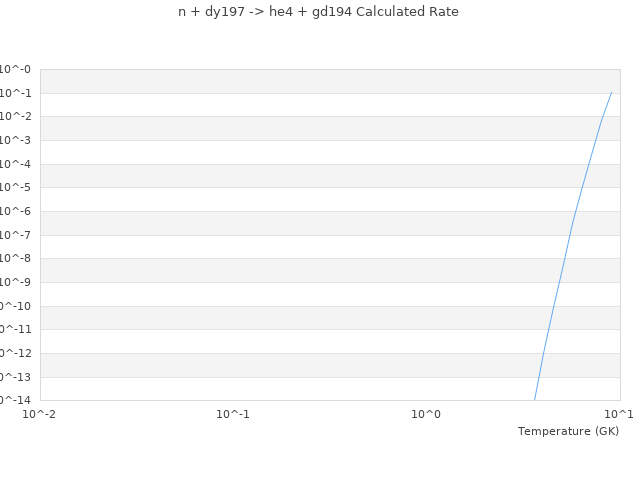

| View Graph | |
